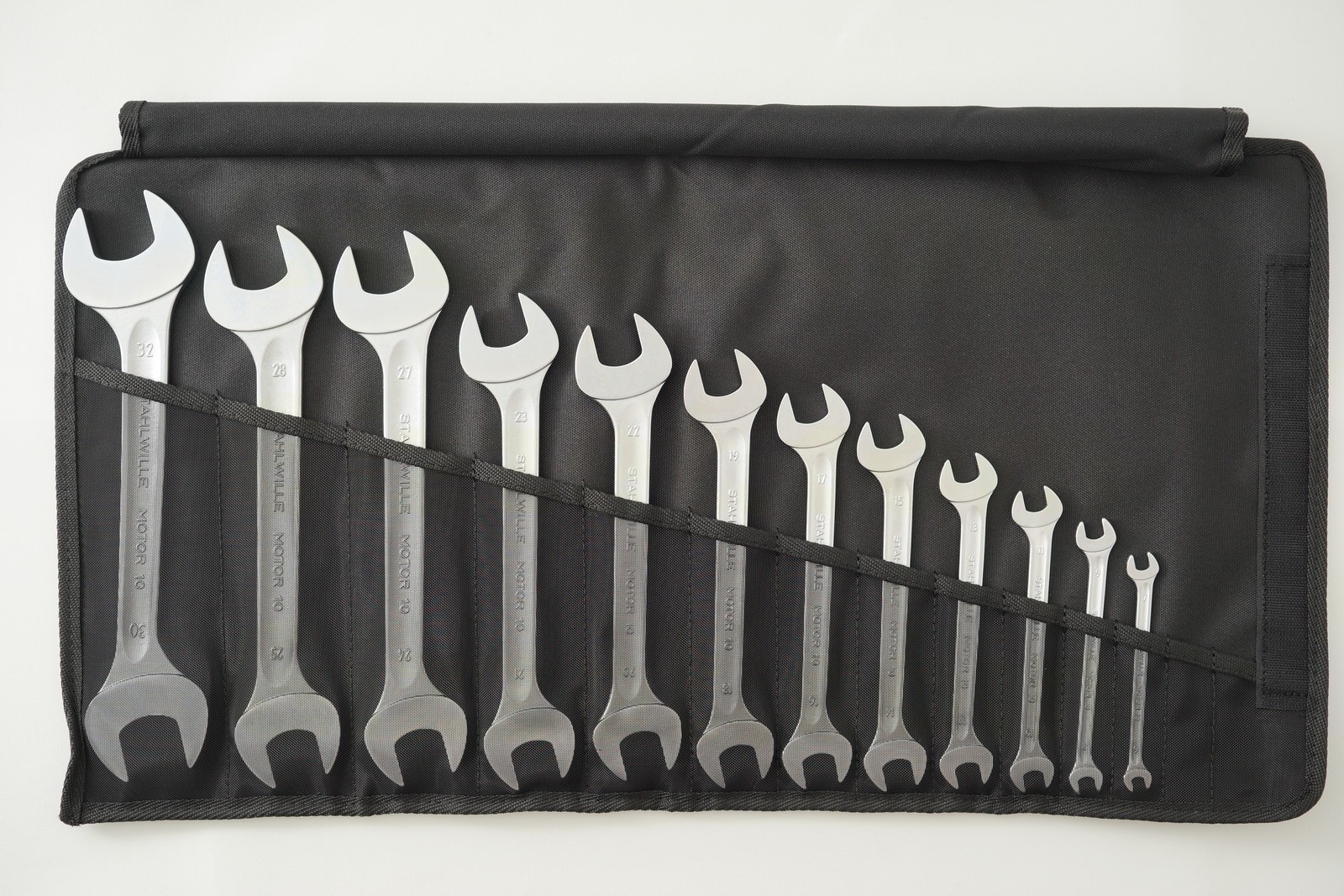

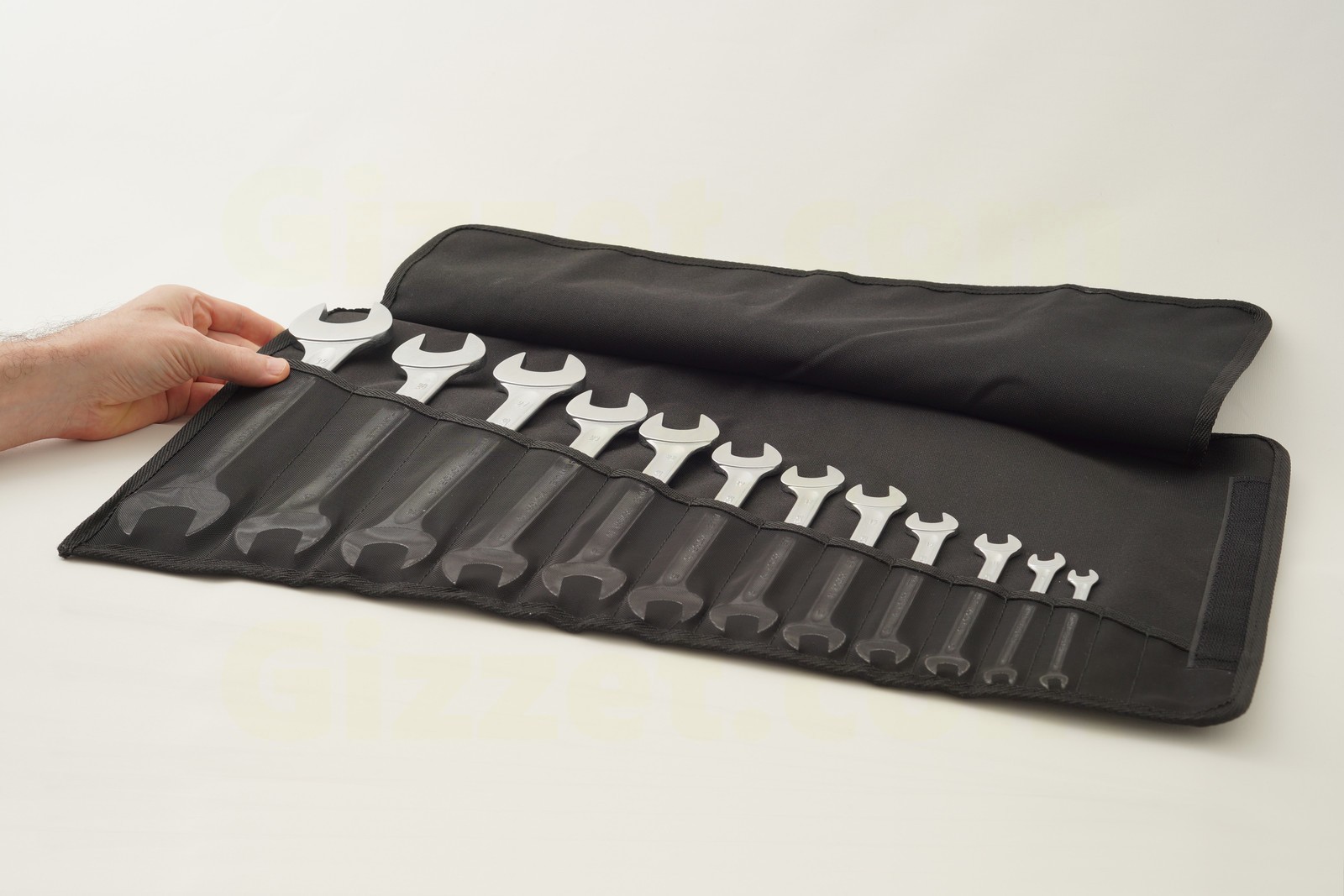

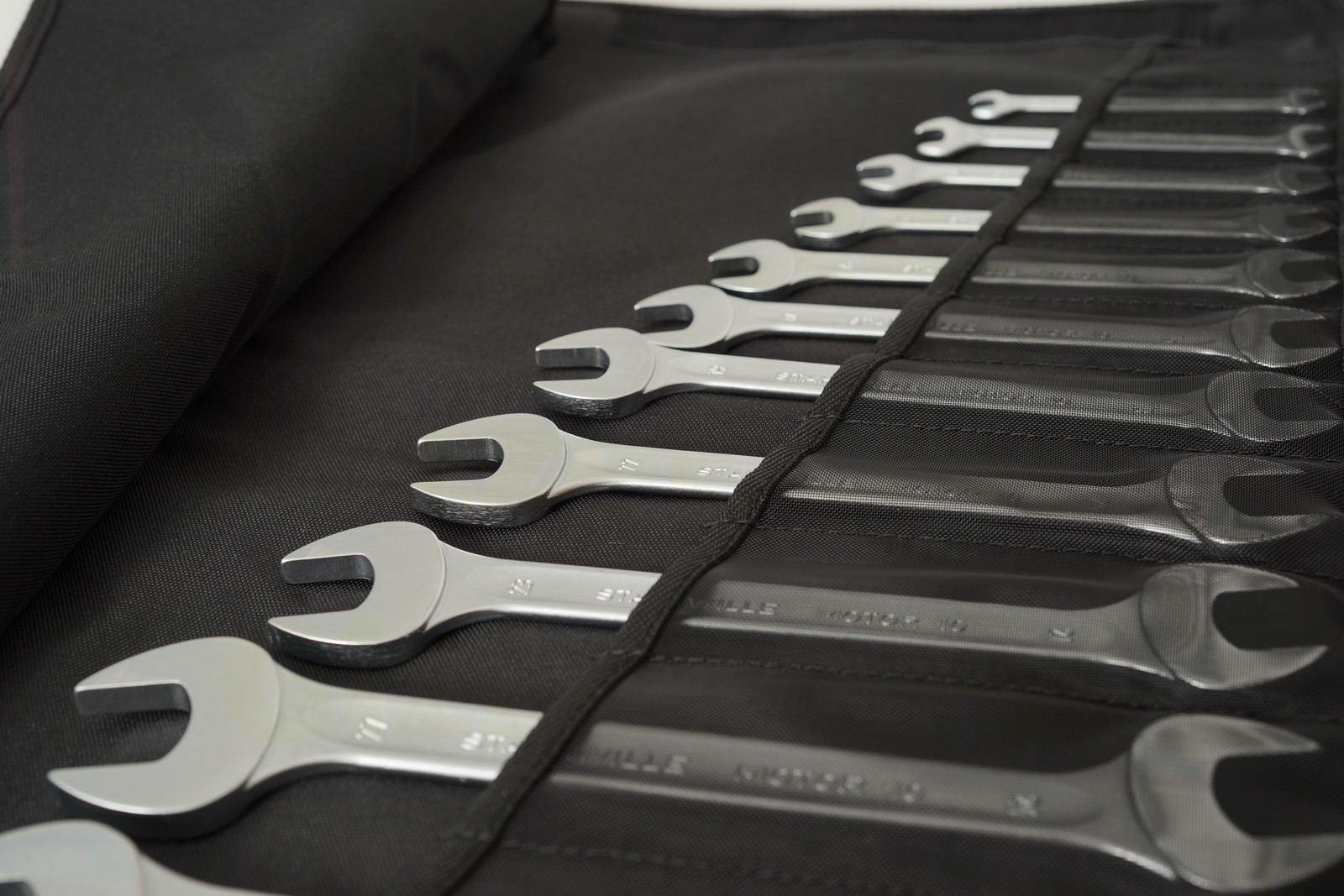

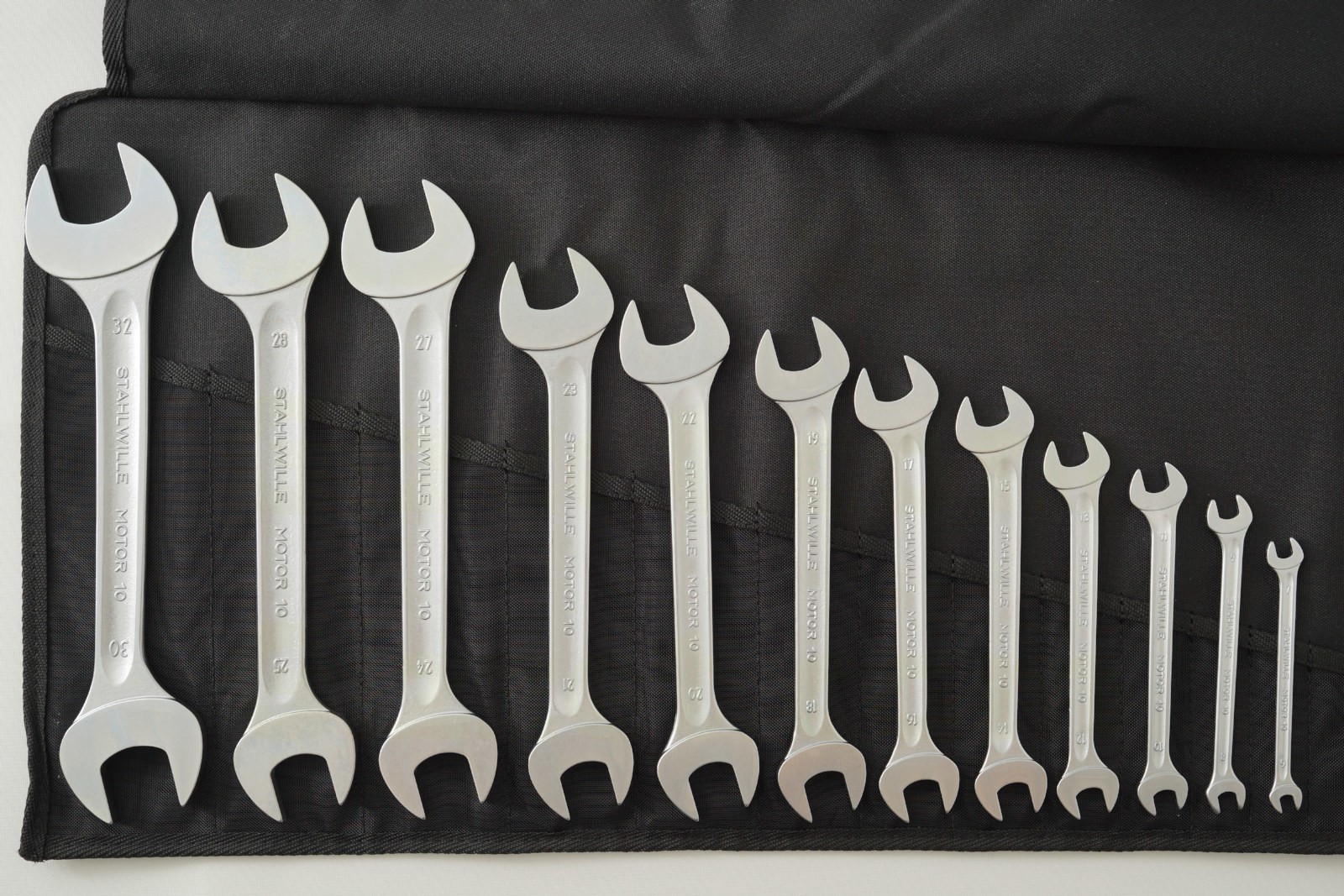

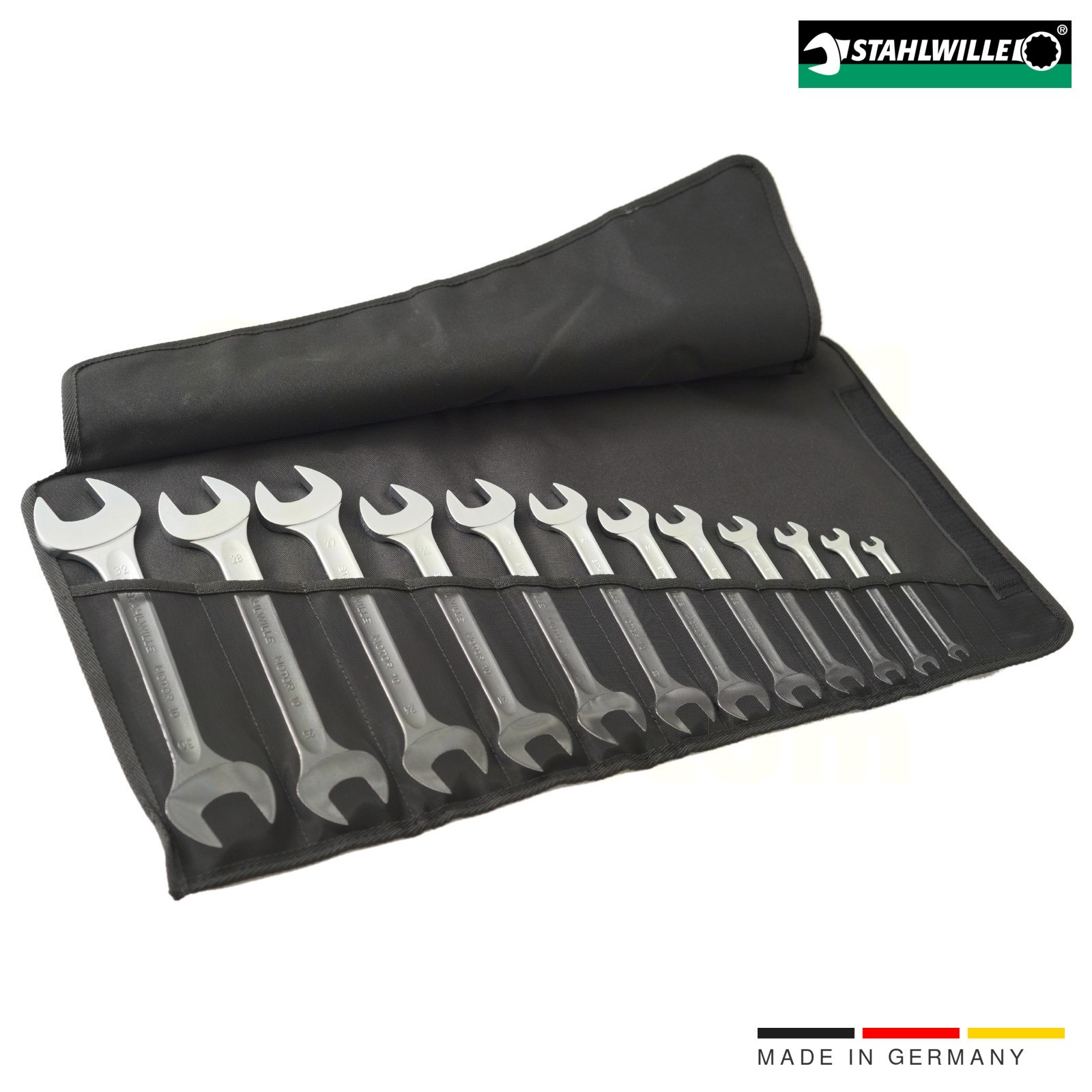

Stahlwille 10/12 Double open-end wrench set MOTOR, 12-piece

More Views

¥14,300

Availability: Out of stock

• 12-piece double open-end wrench set
• Model 10 "Motor"

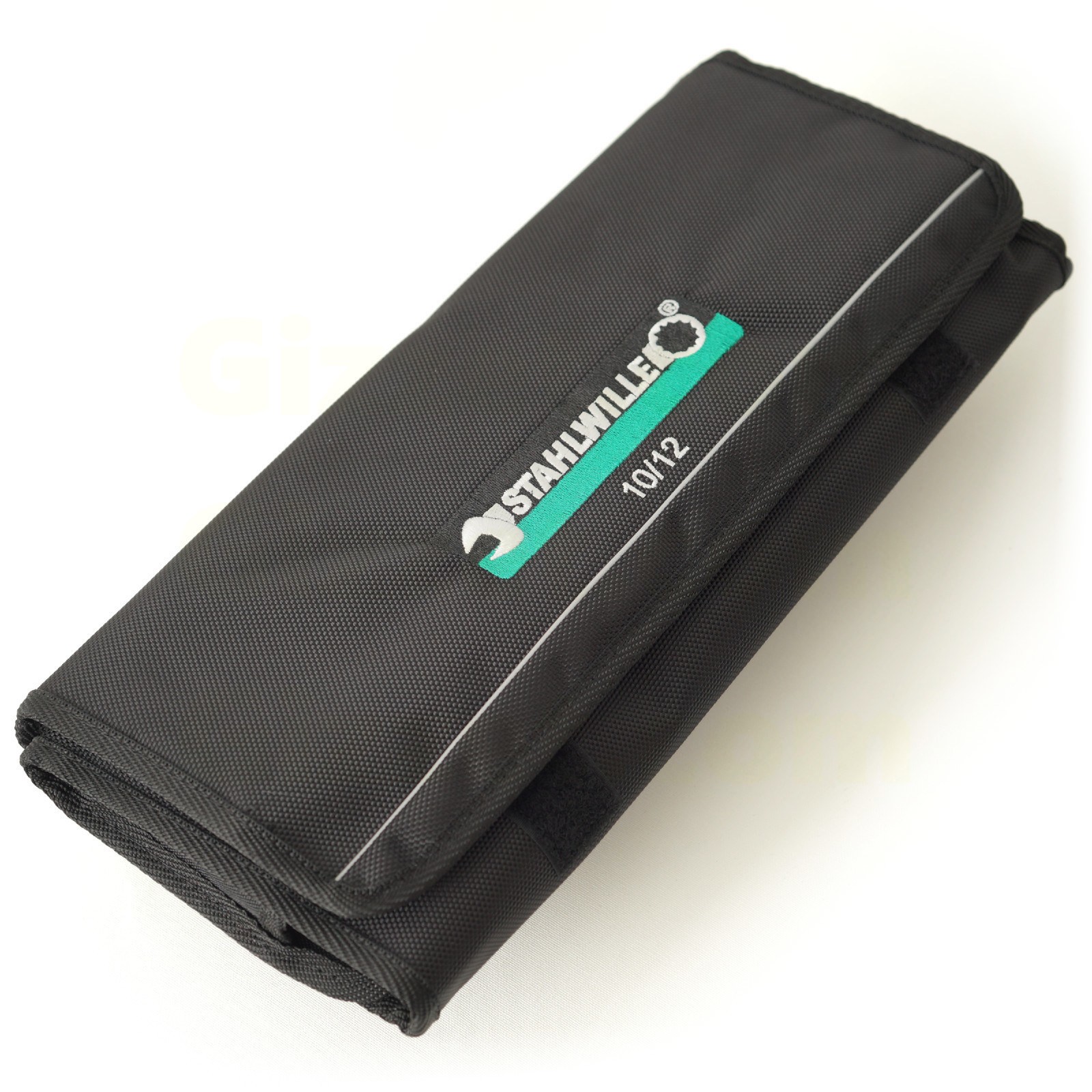

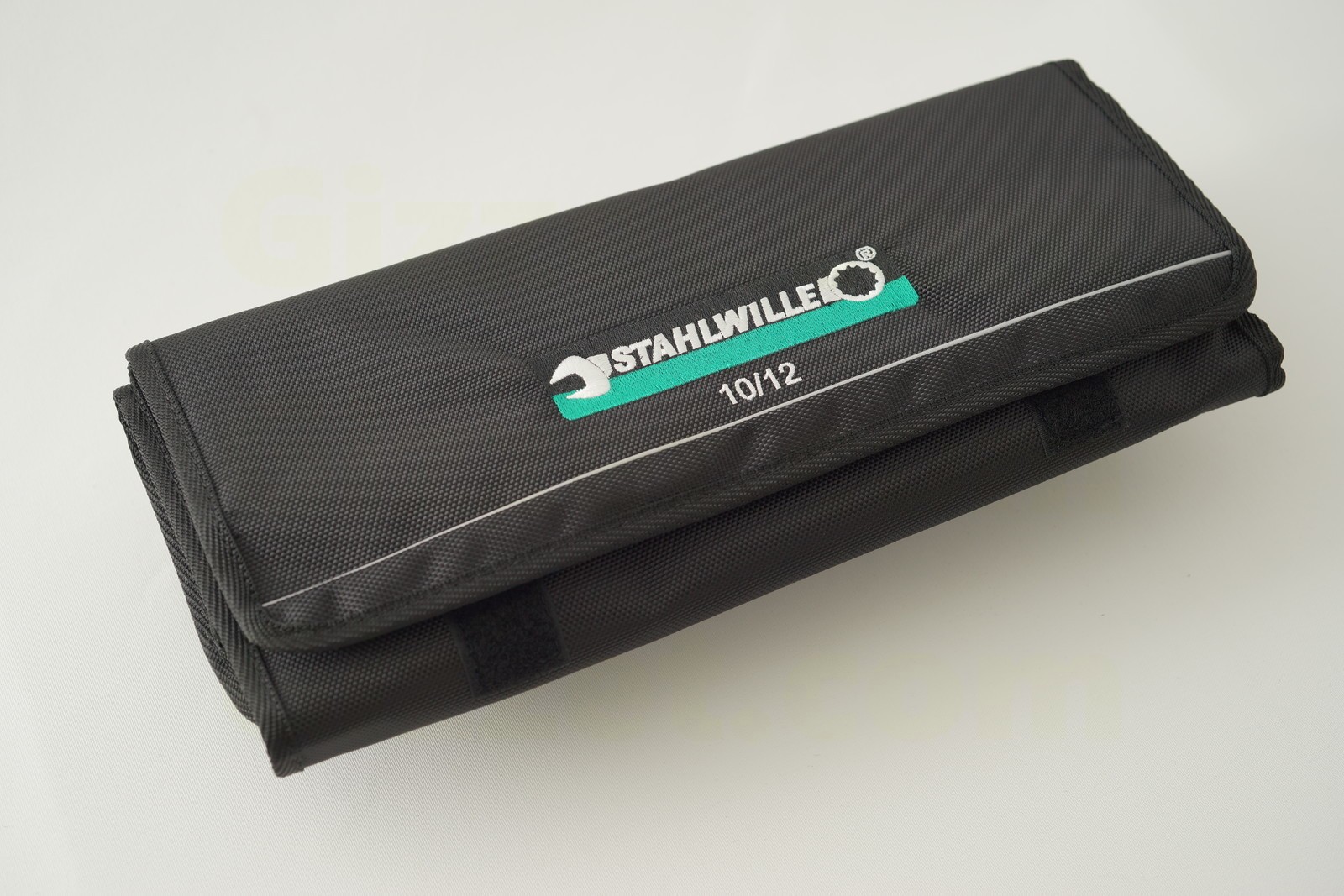

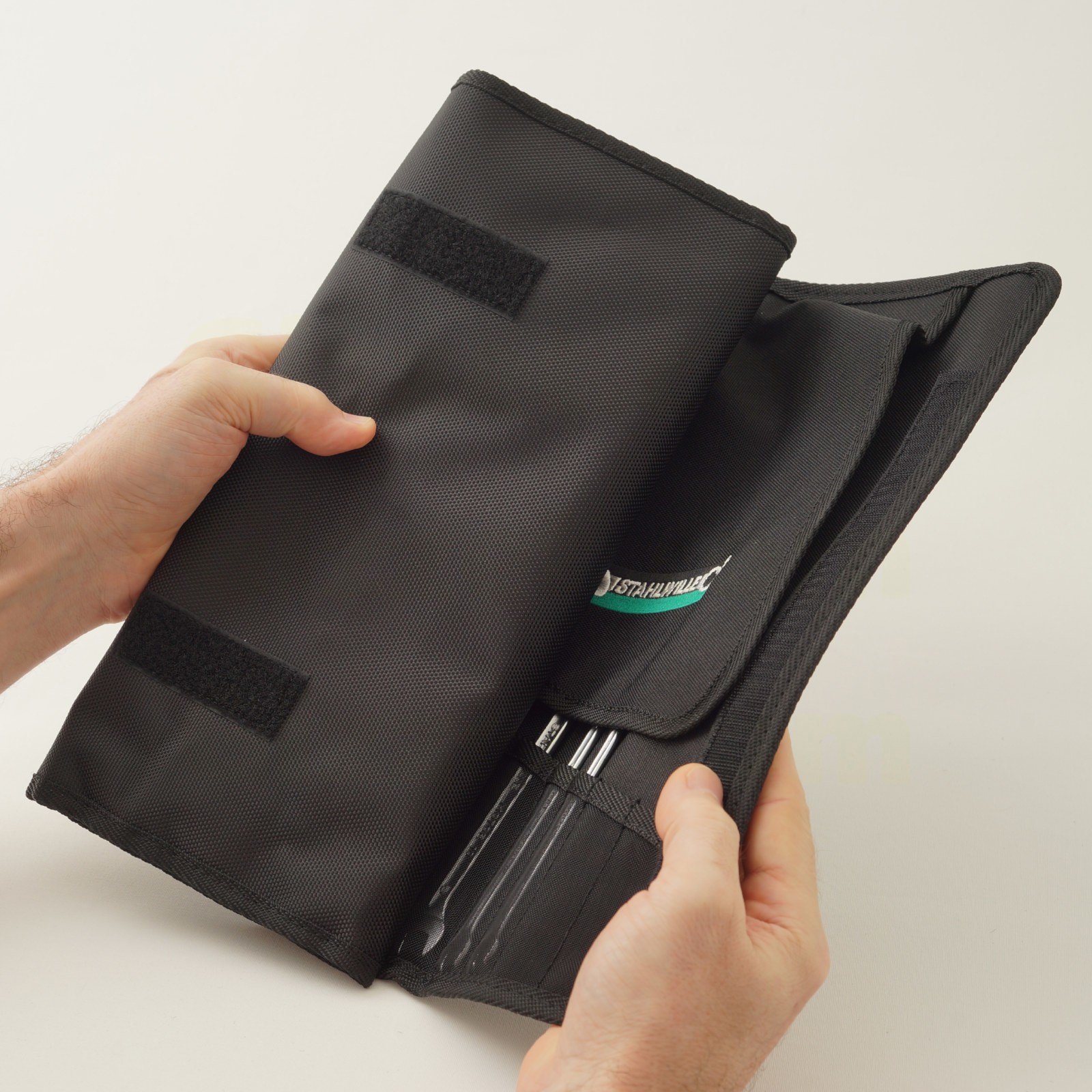

• In durable textile roll-bag
• Key sizes: from 6 x 7 to 30 x 32

[ SKU: STW96400306 ]

Description

According to German DIN 3110/ISO 10102 standard – DIN とは？こちらをご覧ください)
Key sizes: 6 x 7 • 8 x 9 • 10 x 11 • 12 x 13 • 14 x 15 • 16 x 17 • 18 x 19 • 20 x 22 • 21 x 23 • 24 x 27 • 25 x 28 • 30 x 32
Size (L x W x H): 350 x 160 x 35 mm
Weight: 2.12 kg

Stahlwille MOTOR key dimensions

wrench size		L [mm]	b1 [mm]	b2 [mm]	a [mm]	weight [g]
MOTOR	6 x 7	120	15.5	17	3.7	17
MOTOR	8 x 9	140	18	21	4.0	21
MOTOR	10 x 11	155	23	26	4.8	40
MOTOR	12 x 13	170	28	30	5.3	64
MOTOR	14 x 15	190	32	35	5.3	81
MOTOR	16 x 17	205	36	38	5.8	100
MOTOR	18 x 19	220	40	42.5	6.7	147
MOTOR	20 x 22	235	45	49	7.3	185
MOTOR	21 x 23	250	47	51	7.8	225
MOTOR	24 x 27	280	53	60	8.3	299
MOTOR	25 x 28	285	55	62	8.3	309
MOTOR	30 x 32	300	66	70	9.4	451
