Stahlwille 14/11 Combination wrench set OPEN-BOX long, 11-piece

More Views

¥15,900

Availability: Out of stock

• 11-piece combination wrench set
• Model 14 "OPEN-BOX" long version
• In durable textile roll-bag
• Key sizes: from 8 to 22

Made in Germany

[ SKU: STW96401006 ]

Description

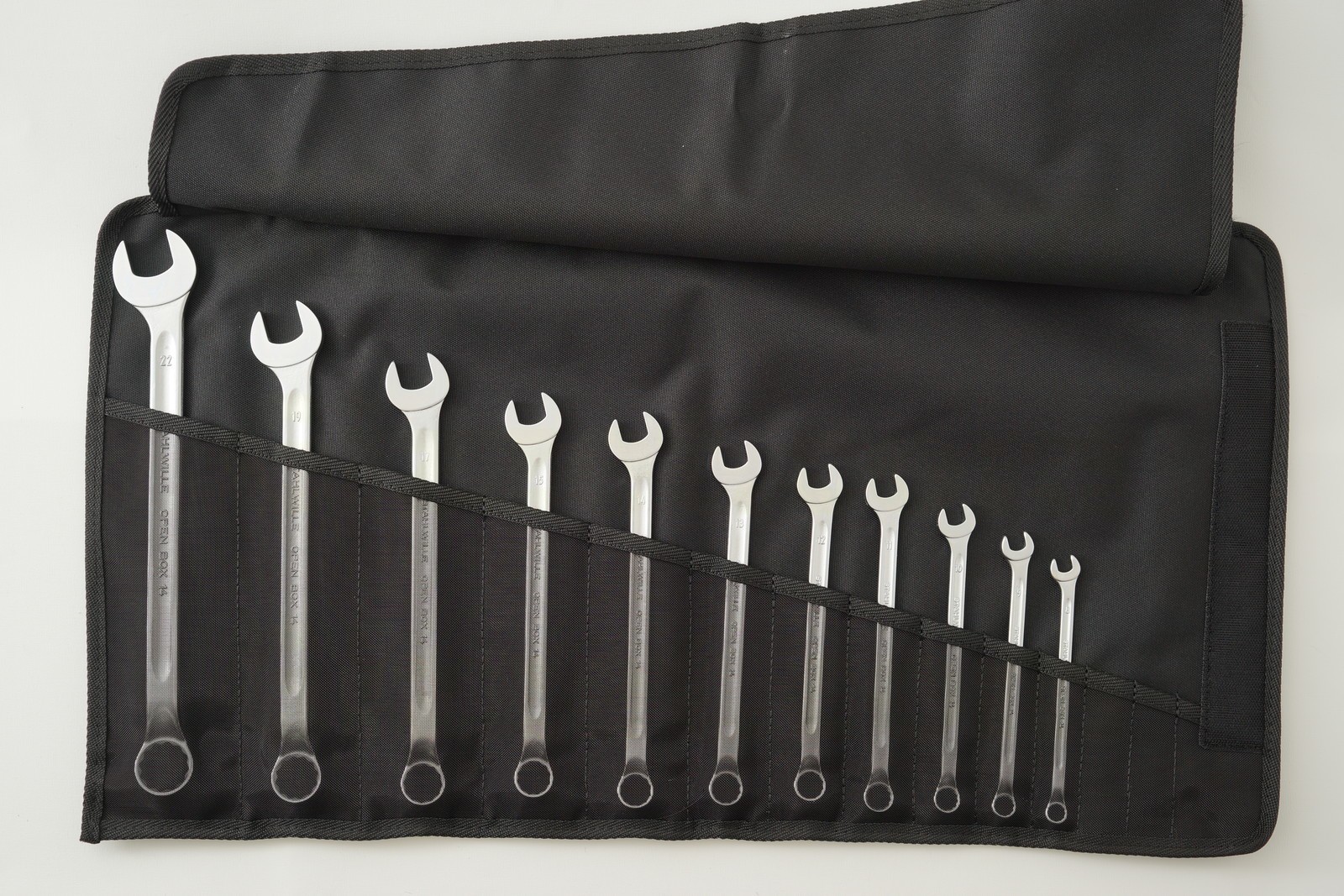

Set of 11 combination wrench keys

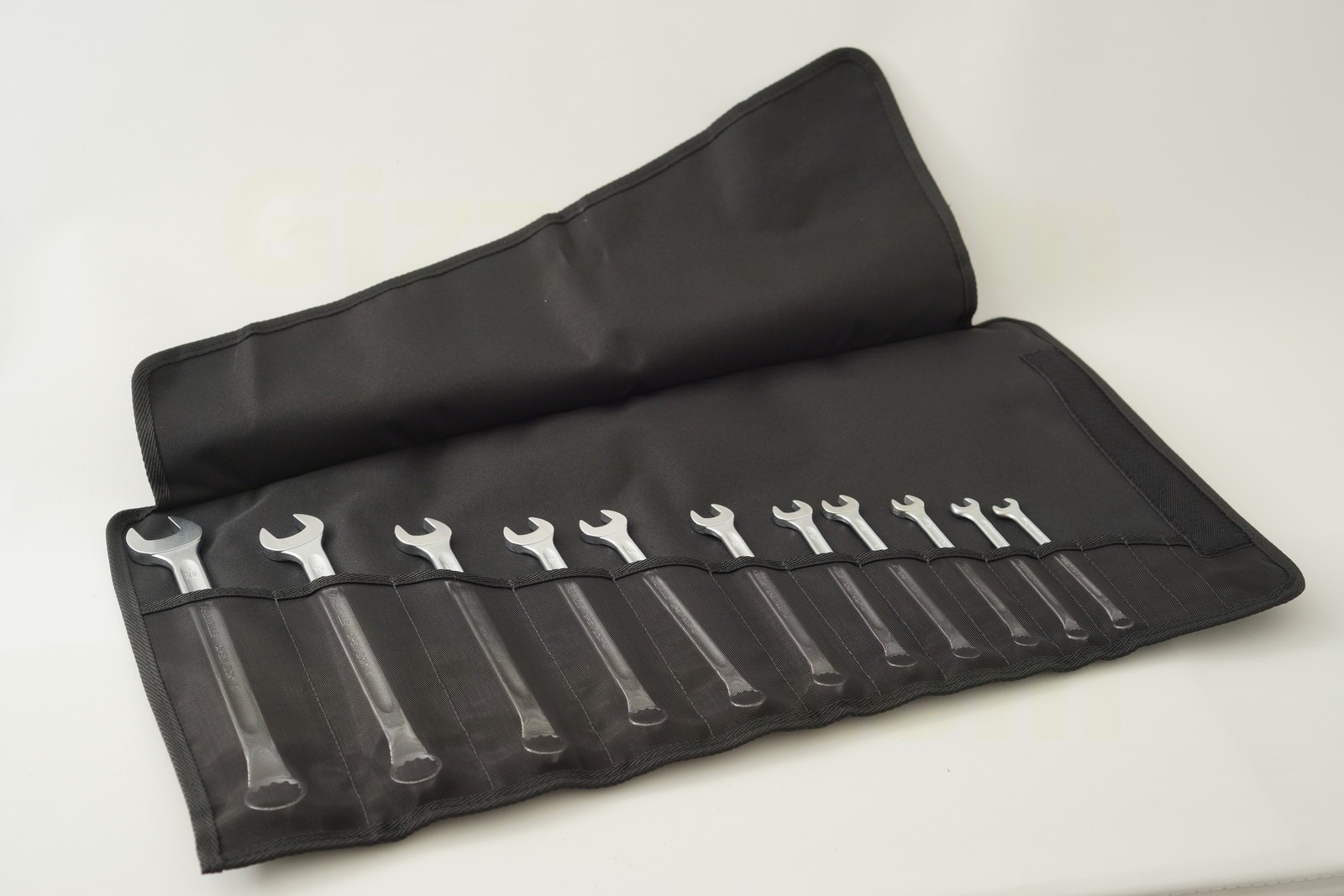

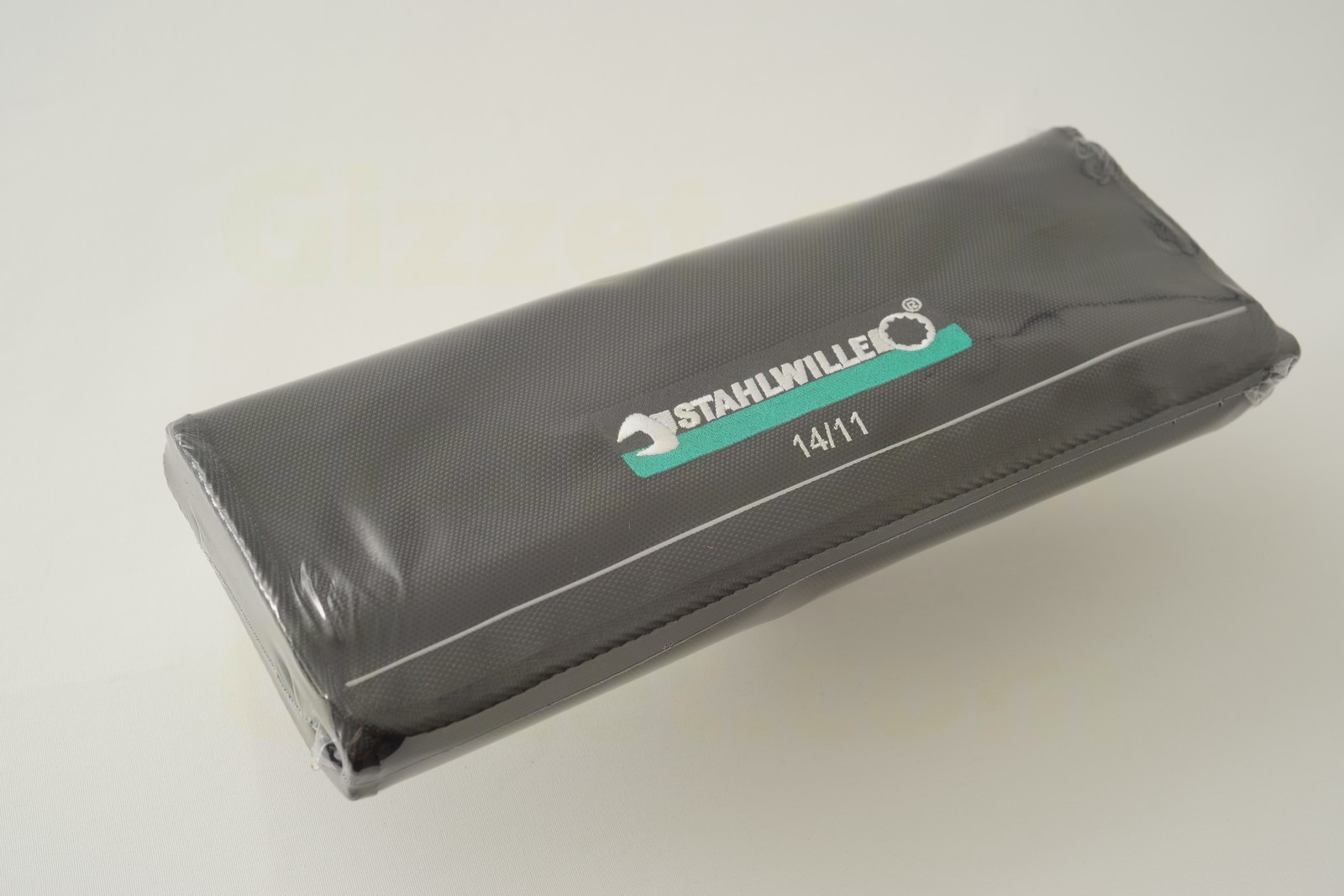

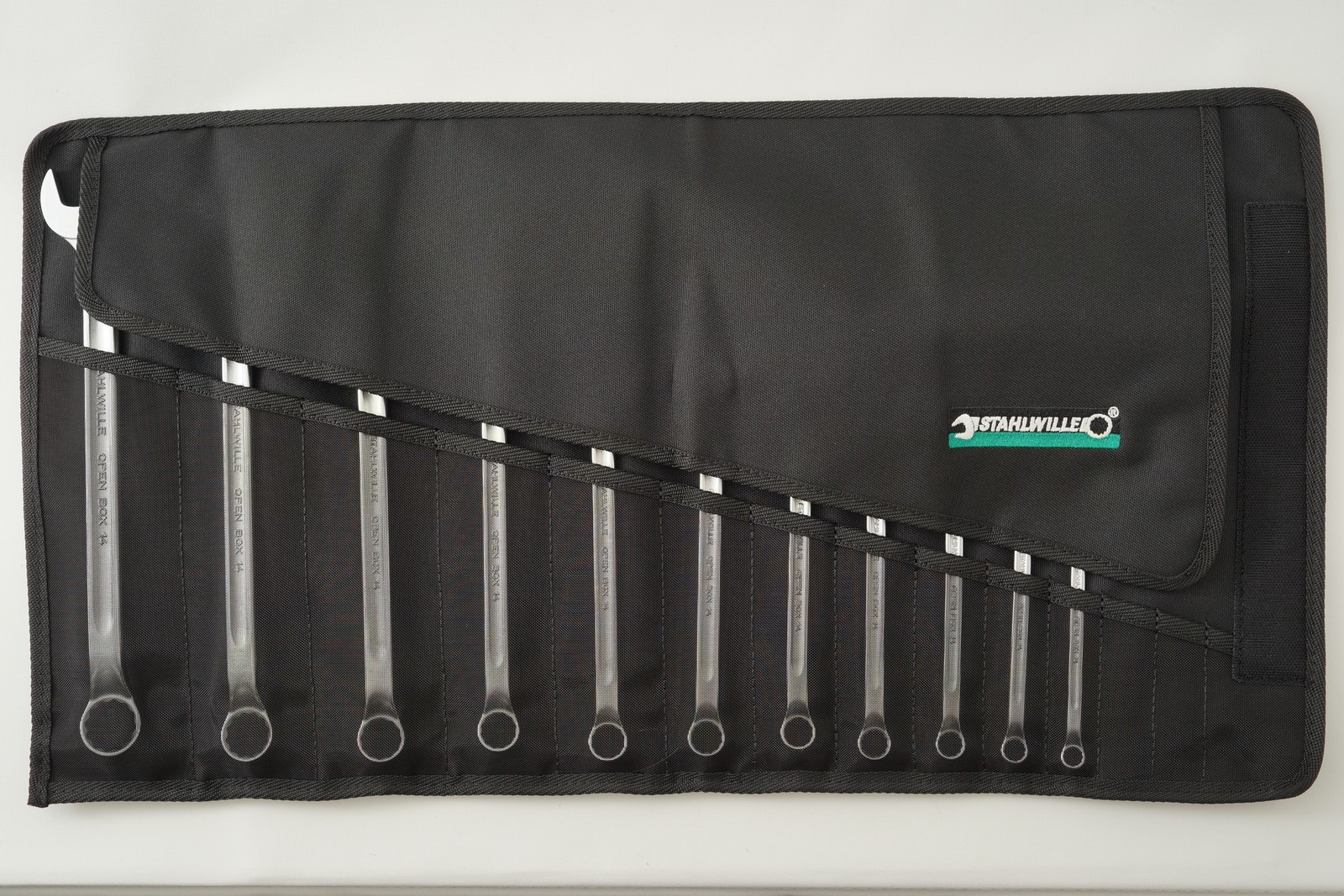

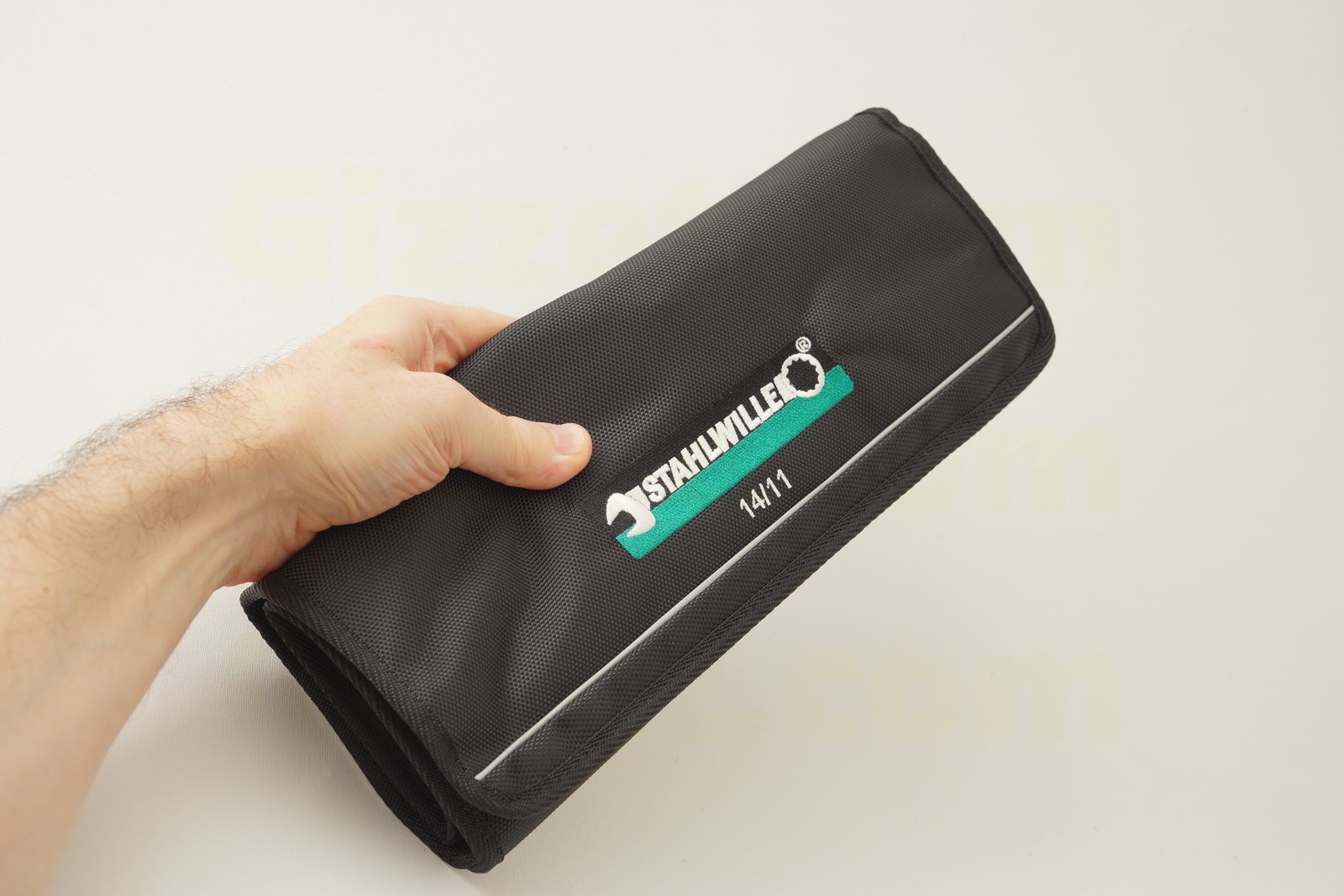

The wrenches are in a roll-bag made of extremely durable textile material with velcro fastener
The model 14 keys are typically for very sturdy and rugged applications such as e.g. on large machinery or installations
Generally they are preferred where ultimate strength and sturdiness is more important than low weight, compact and slim design and good access in restricted areas

The long type 14 OPEN-BOX wrench keys are not just longer but overall larger in size and therefore sturdier
Compared to the type 13 model the handle is about 25% longer and thicker and so are the heads
The weight is about 66% higher (2.45 kg) compared to the 13/17 wrench set (1.48 kg), which has the same number and sizes of wrenches

Chrome alloy steel
Stahlwille matt chrome plating
Handle with double-T profile for high bending stiffness
Head setting: 10°
According to German DIN 3113 Form A/ISO 7738 Form A standard – DIN とは？こちらをご覧ください)
Key sizes: 8 • 9 • 10 • 11 • 12 • 13 • 14 • 15 • 17 • 19 • 22
Size (L x W x H): 350 x 130 x 40 mm
(NOTE: dimensions are indicative and because the bag is made of textile material)
Weight: 1.60 kg

Stahlwille MOTOR key dimensions

wrench size	L [mm]	b [mm]	d [mm]	a1 [mm]	a2 [mm]	t [mm]	weight [g]
8	145	17.5	12.1	5	7	8	28
9	155	19	13.3	5.5	8	9	34
10	165	21	14.6	5.5	8	9	43
11	180	23.5	15.9	6	9	10	55
12	180	25.5	17.3	6	9	10	61
13	195	27.5	18.6	6.5	11	10	83
14	210	29.5	20.1	6.5	11	10	88
15	215	31	21.4	7	11	13	109
17	240	35	24.1	7.5	12	15	151
19	265	39.5	27	8	13	18	190
22	300	45	31.3	8.5	14	20	268
