Details

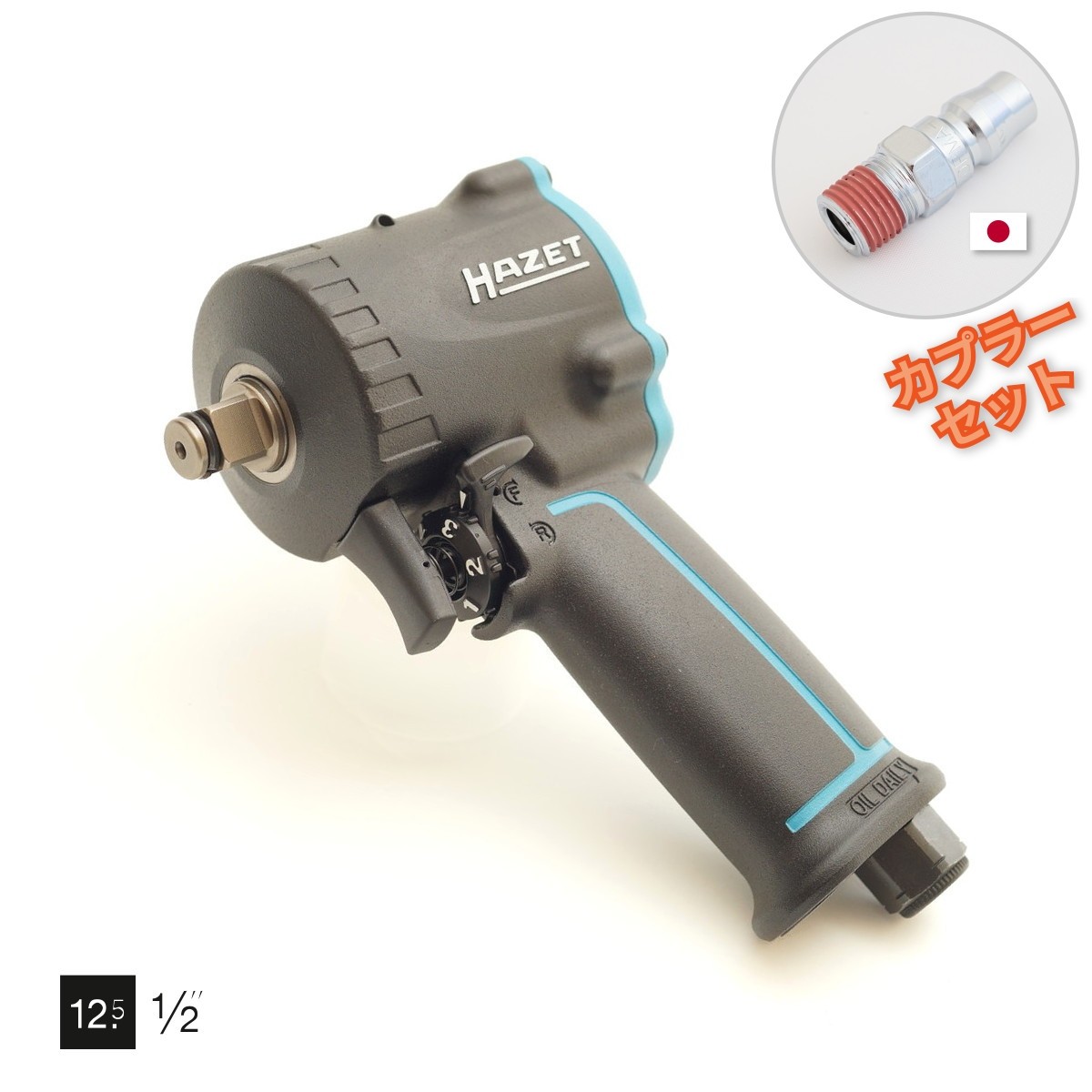

2019 model upgrade "M-1"!!
Now model! Shorter and stronger!!
Only 80mm - 1200 Nm!!
Specification:
- Extremely compact – only 80 mm
- Jumbo hammer striking mechanism
- Ideal for areas with constraint access
- Easy one-hand operation
- For right and left handed operators
- Three-stage (forward), single-stage (reverse)
- Tightening torque: max. 678 Nm
- Vibration acceleration: 13.49 m/s2
- Cold insulated handle
- Exhaust air is guided through the handle downwards
- Air working pressure (bar): 6.3
- Air requirement l/min : 127 l/min
- Air inlet thread: 12.9 mm (1/4")
- Japanese coupler plug included
- Recommended hose diameter: 10 mm
- Drive square: 12.5 mm (1/2")
- Boxed size (L x W x H): 200 x 180 x 70 mm
Dimensions
model |
max. torque |
air consumption |
speed |
max. sound pressure |
weight |
closing |
opening |
9012 M-1 |
678 Nm |
1200 Nm |
127 l/min |
8800 RPM |
92 dB(A) LpA |
1242 g |
Features
